BIC produces standard and customized fiber optic bundles are made from UV and IR-Field silica,plastic or optical glasses with different refractive indicts as appropriate to the requirement for the optically conductive material,which is ground and polished with stainless steel end fittings. The individual fibers are generally between 30 um and 150 um in diameter, but can be drawn to customer-specific diameters on request. The lengths of the fiber bundles vary between 4, 5, 10 and 20 m. Custom fiber optic bundles acceptable.
Fiber Optic Bundle Features:
•Broad transmittance range over UV to NIR wavelengths
•High grade fused silica fiber bundle offered
• Applied in Visible to Infrared waveband transmission
• Bifurcated and Trifucrated bundles available
• NA=0.22±0.02(0.1to 0.28 on request)
• CCDR:1:1.04,1:1.1,1:1.2 (1:1.06,1:1.15,1:1.25,1:1.4on request).
• Customizing for your needs
Fiber Optic Bundle Application
Light guide for semiconductor equipment, LD, UV light source, various analysis and measurement such as spectrum analysis and fluorescence analysis, and printing machines.
Fiber Optic Bundle Structure:
|
Item
|
Technical Parameters
|
Unit
|
|
Silica Optical Fiber
Bundle
|
Core Material
|
SiO2
|
＿
|
|
Cladding Material
|
Acrylate Coating
|
＿
|
|
Core Diameter
|
192±5
|
μm
|
|
Cladding Diameter
|
200+5/-10
|
μm
|
|
Buffer Diameter
|
240±10
|
μm
|
|
Refractive Index Profile
|
Step- Index
|
＿
|
|
Numerical Aperture
|
0.22 ± 0.02
|
＿
|
|
Full Acceptance Cone
|
25.4
|
degrees
|
|
Working Temperature
|
-65ºC to +85ºC
|
℃
|
|
Working Wavelength
|
200nm-1100nm
|
nm
|
|
Cladding Diameter
|
1000±60
|
μm
|

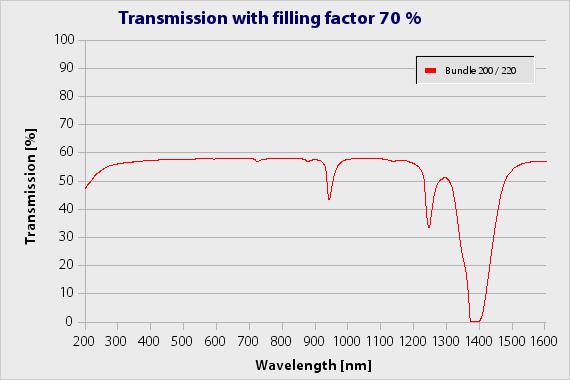

Optical Fiber Bundle Transmission:
Optical Fiber Bundle Spectrum Attenuation:

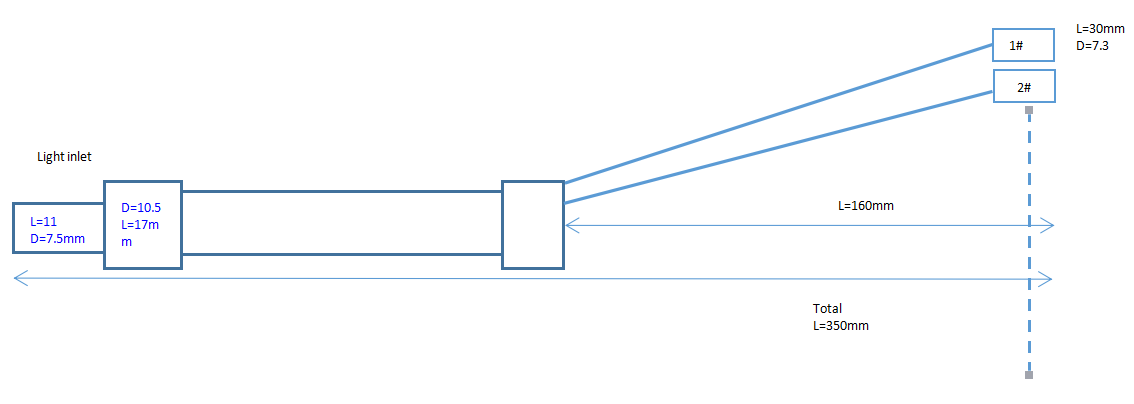

Optical Fiber Bundle Dimension Drawing:

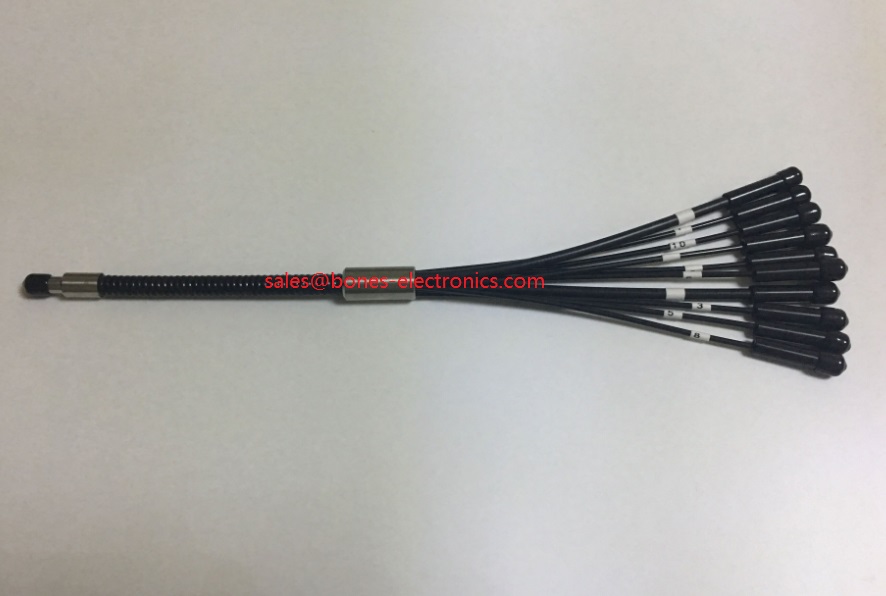

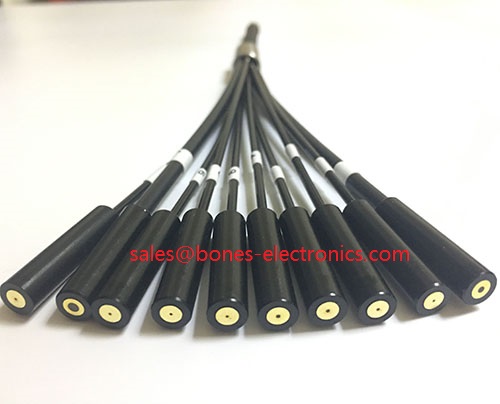

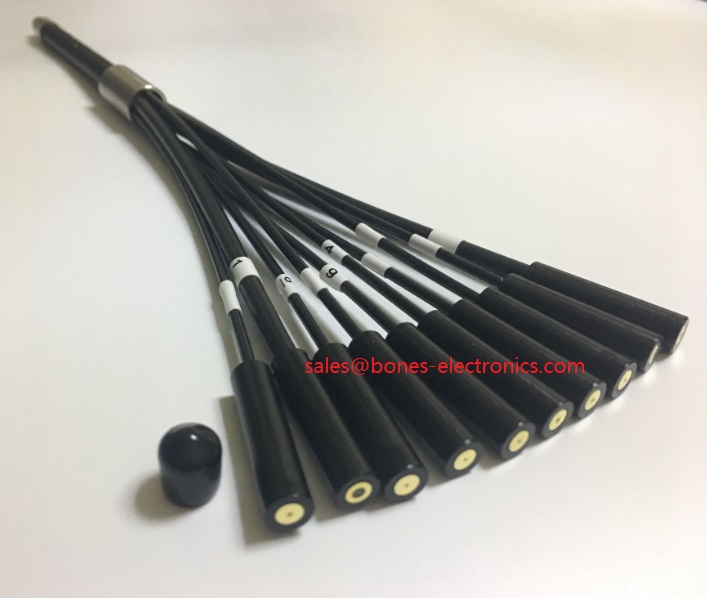

Fiber Optical Bundle Reference Photo:
