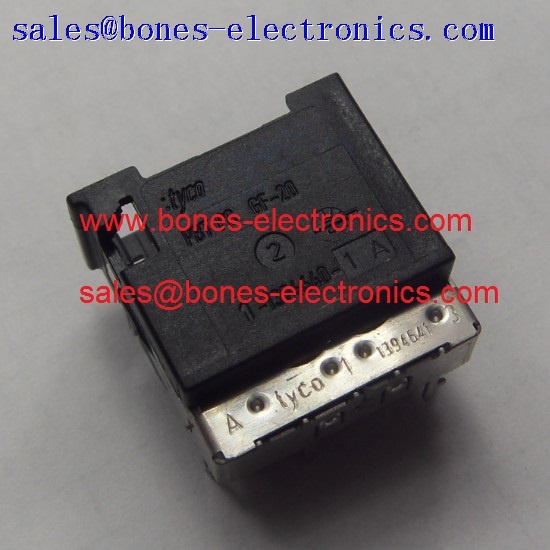

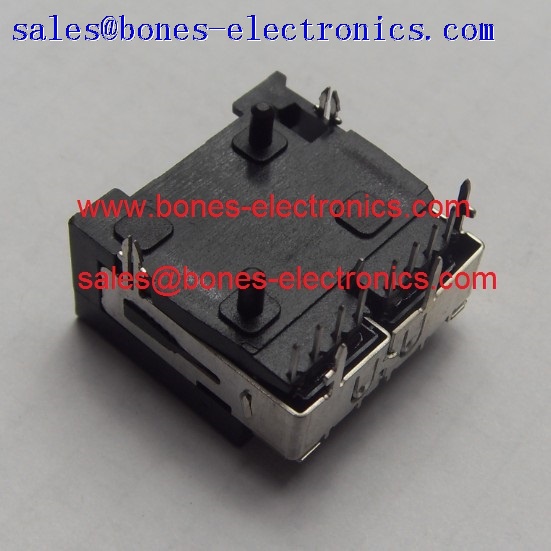

Item：TYCO 1-1394640-1
Details：
BEC P/N: TYCO 1-1394640-1
Manufacturer name: TYCO (NOW TE CONNECTIVITY)
Description: MICROPIGTAIL HDR HSG2P
Applicaiton: POF Automotive MOST system
|
Item |
Specification |
|
|

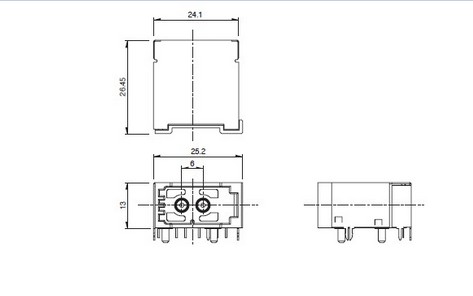

Overall Size (W*D*H) |
25.20*26.45*13.00 mm |
|
|
Voltage |
3.3V/5V |
|
|
Frequency |
44.1 KHz/48 KHz |
|
|
Receiver |
Current in working condition |
25 mA Max. |
|
Current in non-working condition |
10 uA Max. |
|
|
Data Transmission Rate |
4 to 50 Mbps |
|
|
Light Sensitivity |
-1.5 to -23 dB/M |
|
|
Transmitter |
Current in working condition |
30 mA Max. |
|
Data Transmission Rate |
4 to 50 Mbps |
|
|
Peak Wavelength |
650 nm |
|
|
Light Output Level |
-1.5 to -10 dB/M |
|
