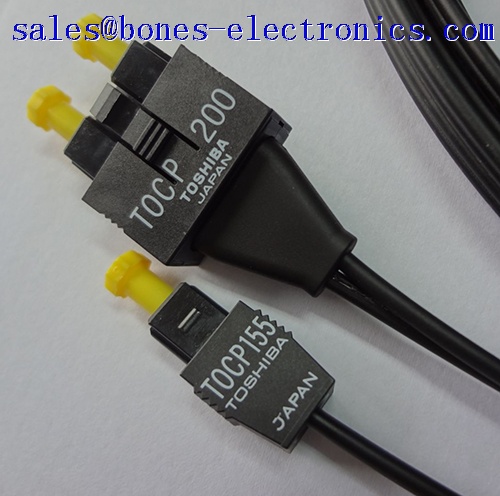

Item:Toshiba TOCP 200
Details:
Toshiba TOCP 200 Connector Product descritpion:
Toshiba TOCP series POF Products include Connector,Transmitter, Receiver for 1.0mm POF cable and HCS 200/230 Cable, F05 F07 connector as well as cable.
Toshiba products can be formed to be a completely optical system which is suitable for low-cost and certain system as optical fiber system is withstands voltage of insulation, EMI/RFI and safety.
Toshiba TOCP 200 Connector Features:
–Anti-electromagnetic interference and electromagnetic radiation
–Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission
–High temperature and low temperature(-40 to 70)
–Easy to install, needless of maintenance
–Plastic optical fiber is not conductive, can share the power transmission pipeline
–Long-range power supply
–Accord with the Agilent universal
–RoHS Compliance
Toshiba TOCP 200 Connector Application:
–Data transmission and industrial automation and bus systems
–Industrial robots, intelligent system and servo system
–Communication exchange systems
–Digital multimedia systems
–Medical sensing system
–Power system, etc.
Toshiba TOCP 200 Connector Technical parameter :
1. Module
Transmitter | Receiver | Connector | Type | Max Transmission Loss (dB) |
TOCA100 | TOCA100 | TOCP100/ TOCP150 | Simplex | 2.0 |
TOCA150 | TOCA15 | TOCP100/ TOCP150 | Simplex | 3.5 |
TOCA200 | TOCA200 | TOCP200 /TOCP200Q | Duplex | 2.0 |
TOCP250 | TOCP250 | TOCP200/ TOCP255 | Duplex | 3.5 |
2. Toshiba TOCP 200 Connector
Part No. | Wave length | Transmission Loss | Transmission Length | Type | Interface |
TOCP100 | 650nm | <0.22dB/m | 50m | Simplex | 1.0/2.2 POF |
TOCP155 | 650nm | <0.22dB/m | 50m | Simplex | 1.0/2.2 POF |
TOCP200 | 650nm | <0.22dB/m | 50m | Duplex | 1.0/2.2 POF |
TOCP200X | 800nm | <7Db/km | 1km | Duplex | 200/230 HCS |
TOCP255 | 650nm | <0.22dB/m | 50m | Duplex | 1.0/2.2 POF |
TOCP255P | 650nm | <0.22dB/m | 50m | Duplex | 1.0/2.2 POF |
