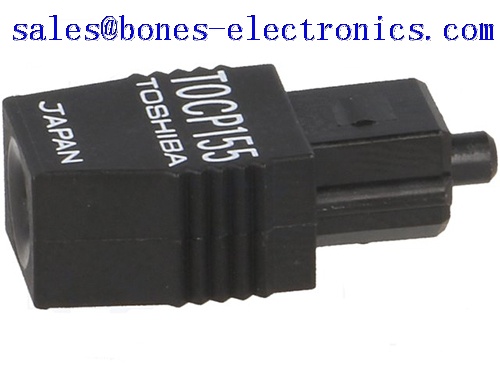

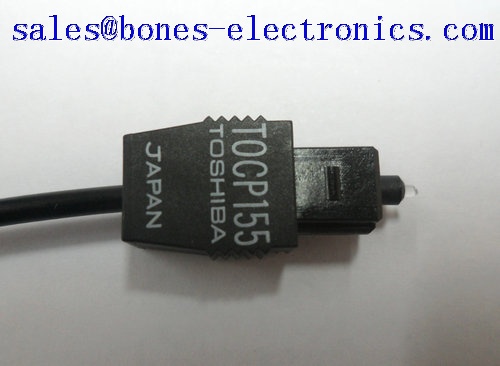

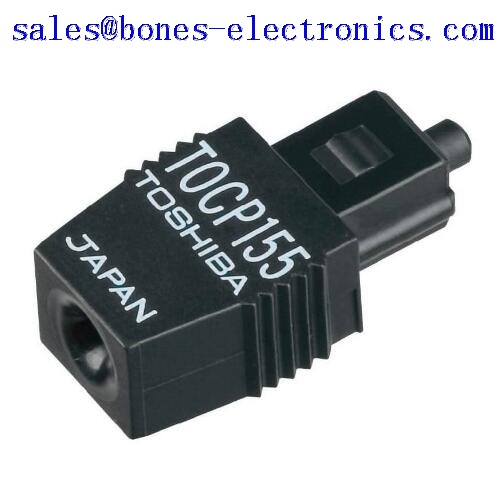

Item:Toshiba TOCP 155
Details:
Toshiba TOCP 155 Product Description:

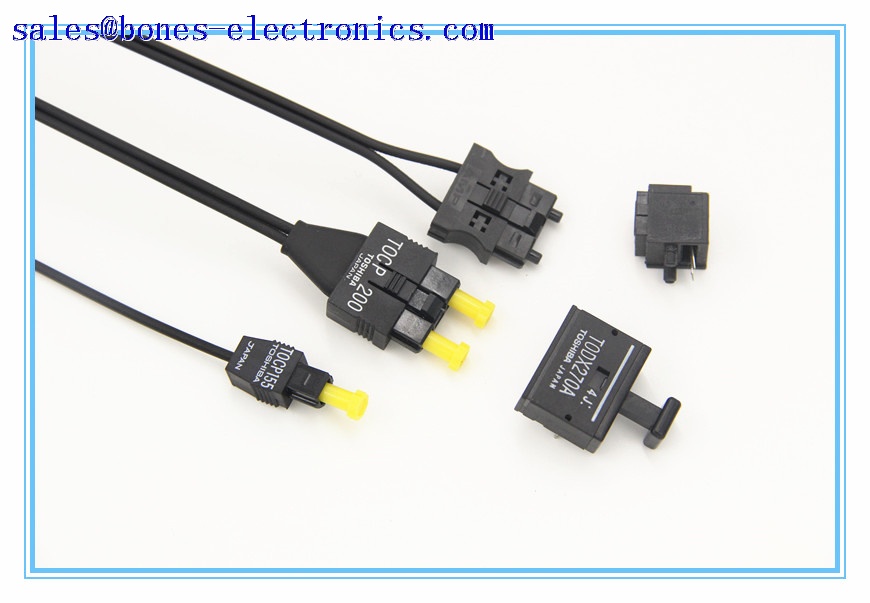

Toshiba POF Products include Connectors, Transmitter, Receiver for 1.0mm POF cable and HCS 200/230 Cable, F05 F07 connector as well as cable.
Toshiba products can be formed to be a completely optical system which is suitable for low-cost and certain system as optical fiber system is withstands voltage of insulation, EMI/RFI and safety.
Toshiba TOCP 155 Product Features:
–Anti-electromagnetic interference and electromagnetic radiation
–Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission
–High temperature and low temperature(-40 to 70)
–Easy to install, needless of maintenance
–Plastic optical fiber is not conductive, can share the power transmission pipeline
–Long-range power supply
–Accord with the Agilent universal
–RoHS Compliance
Toshiba TOCP 155 Application:
–Data transmission and industrial automation and bus systems
–Industrial robots, intelligent system and servo system
–Communication exchange systems
–Digital multimedia systems
–Medical sensing system
–Power system, etc.
Toshiba TOCP 155 Technical parameter :
Parameter | Unit | Numerical value |
Connector type | — | TOCP 255/F07 |
Fiber optic core diameter | mm | Φ1.0 |
Fiber optic core material | — | PMMA |
Finished product diameter | mm | Φ2.2*2 |
Outer material | — | PE |
Outer color | — | Black |
Application wavelength | nm | 650 or 530 |
Attenuation(650nm) | dB/km | 180~200 |
Inter-convertibility | dB | Max:1.0dB( randomizing) |
Bend radius | mm | 25 |
Insertion loss | dB | Max:1.0dB |
Tensile strength | N | ≤1.0dB(0~80N) |
Vibration | — | ≤1.0dB(5~50HZ,1.5mm amplitude) |
Working temperature | °C | -55°C~+85°C |
Storage temperature | °C | -55°C~+85°C |
Standard | — | Europe ROHS,
USA Standard(SONET.OC-48), Japan standard(G.653), China industry standard(YD/T1447-2006) |
1. Toshiba TOCA Module
Transmitter | Receiver | Connector | Type | Max Transmission Loss (dB) |
TOCA100 | TOCA100 | TOCP100/ TOCP150 | Simplex | 2.0 |
TOCA150 | TOCA15 | TOCP100/ TOCP150 | Simplex | 3.5 |
TOCA200 | TOCA200 | TOCP200 /TOCP200Q | Duplex | 2.0 |
TOCP250 | TOCP250 | TOCP200/ TOCP255 | Duplex | 3.5 |
2. Toshiba TOCP Connector
Part No. | Wave length | Transmission Loss | Transmission Length | Type | Interface |
TOCP100 | 650nm | <0.22dB/m | 50m | Simplex | 1.0/2.2 POF |
TOCP155 | 650nm | <0.22dB/m | 50m | Simplex | 1.0/2.2 POF |
TOCP200 | 650nm | <0.22dB/m | 50m | Duplex | 1.0/2.2 POF |
TOCP200X | 800nm | <7Db/km | 1km | Duplex | 200/230 HCS |
TOCP255 | 650nm | <0.22dB/m | 50m | Duplex | 1.0/2.2 POF |
TOCP255P | 650nm | <0.22dB/m | 50m | Duplex | 1.0/2.2 POF |
