SCV PMMA sparkle fiber optic cable

Get A Quote

Main Features

Item:SCV
Details:

Product name:PMMA Sparkle Fiber Optic Cable
P/N:SCV-750-300
Details:
Mini-diameter Side Glow Sparkle Fiber Optic for fiber optic lighting
PMMA Sparkle Fiber Optic Cable, also called sparkel fiber, side sparkle fiber optic,sparkel fibe optic etc., which is widely used as fiber optic kits for fiber optic curtain, waterfall dropping etc.
This Side Glow Sparkle Fiber Optic cable is different from solid core side glow fiber optic

. It is jacketed by 3strands, 4strands or 7strands of 0.75mm side glow sparkle fiber, which can be

used with various light engines such as LED light engine, Metal Halide light engine .
Sparkle Fiber Optic Cable specification:
Outer diameter: 2.6mm
Core: 3 x 0.75mm chipped fibres
Core material: Polymethyl methacrylate resin
Cladding material: Fluorinated polymer
Outer sheathing: Phthalate free PVC
Max. No. Of tails: 350
Max. Run length: 10m with 150W metal halide or halogen light source

Basic properties:





Fiber core/clad material



Polymethylmethacrylate(PMMA)/Fluroresin



Numerical aperture



0.5



Cable appearance



Smooth surface , no visible crackles , defects or mechanical damage



Cable diameter fluctuation



±5%



Using temperature range of the cable



-20~+70



Model specifications



P/N



Fiber strands



fiber/cable diameter(mm)

Spool length (m)

Jacket material



SF4-750 (bare fiber)



1pc



0.75



2700



Transparent PVC



SCV4-750-3
(sparkel cable)



3pc



0.75/3.0



900



SCV4-750-4 (sparkle cable)



4



0.75/3.0



900



SCV-750-7
(sparkle cable)



7



0.75/4.0



900



Remark: custom sparkle fiber and cables acceptable.

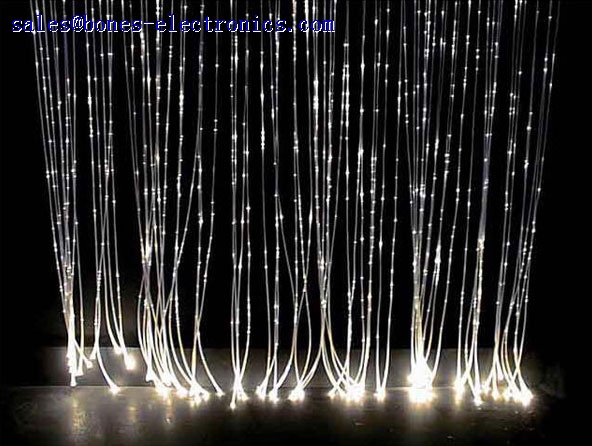

Fiber Optic lighting Applications

2012 05 15 22 12 178 2012 05 15 22 12 549
fiber optic lighting curtain for commercial application fiber optic lighting curtain for residential application
2012 05 15 22 15 574 2012 05 15 22 17 319
