SCV-750-4 4*0.75mm sideglow sparkle cable

Get A Quote

Main Features

Item:SCV-750-4

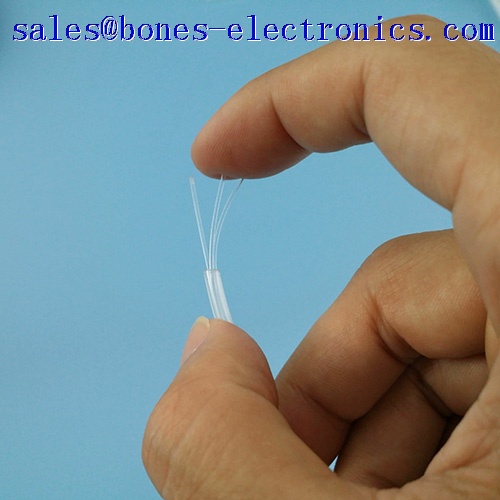

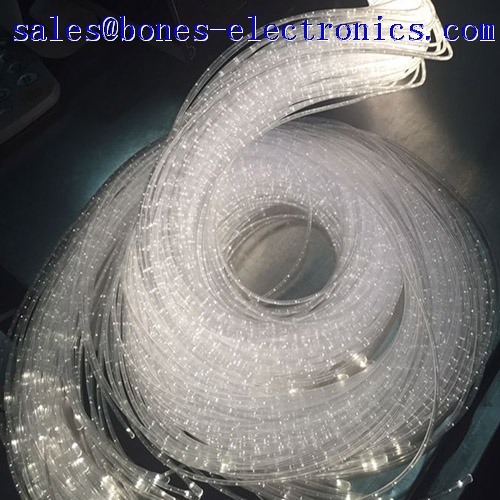

4*0.75mm sideglow sparkle cable
4*0.75mm sideglow sparkle cable 4*0.75mm sideglow sparkle cable 4*0.75mm sideglow sparkle cable
Click to view the next picture
Product name:4*0.75mm sideglow sparkle cable
Item:SCV-750-4
Details:
Sparkle twinkling side glow fiber optic lighting cable, also called side emitting fiber optic cable,sparkle fiber optic cable, side light sparkle fiber,is an innovatingfiber optic lighting product that uses PMMA fiber optic,polymer optical fiber,plastic optical fiber to achieve brilliant and distinctive sparkling effect without any noticeable reduction in the intensity of the light throughout entire length of PMMA fiber optic.
Its revolutionary design uses advanced LASER technology to cut the fibers along its length in regular distance(15mm, 30mm, 40mm)during the manufacturing process which results in an amazing ‘sparkle’ effect once the fiber is illuminated.

The side glow sparkle PMMA fiber is designed for decorative lighting applications such as chandeliers, light curtains, window displays, multi-sensory environments and feature lighting.which is widely used as fiber optic lighting kits for fiber optic lighting curtain, waterfall dropping etc.

Sparkle Side Glow Fiber Optic Cable Structure:

side sparkle fiber optic cable structure

Star Twinkling Side Glow Fiber Optic Cable Technical Specifications:

Outer diameter: 2.6mm
Core: 3 x 0.75mm chipped fibres
Core material: Polymethyl methacrylate resin
Cladding material: Fluorinated polymer
Outer sheathing: Phthalate free PVC
Max. No. Of tails: 350
Max. Run length: 10m with 150W metal halide or halogen light source

Typical Applications:

  • Chandeliers
    • Lighting curtains/screens
    • Window displays
    • Feature lighting

Basic properties

Fiber core/clad material Polymethylmethacrylate(PMMA)/Fluroresin
Numerical aperture 0.5
Cable appearance Smooth surface , no visible crackles , defects or mechanical damage
Cable diameter fluctuation ±5%
Using temperature range of the cable -20~+70

Ordering Information:

Item Part Number Fiber Strands*Dia Cable Dia.

(mm)

Spool Length

(m)

Remark
Side Light

Sparkle Fiber

SF-750 1*0.75mm N/A 2700 Bare Fiber
SF-1000 1*1.0mm N/A 1500
Side Light

Sparkle Cable

SCV-750-1 1*0.75mm 1.6 2700 Sheathed with UV stabilized clear PVC jacket
SCV-750-3 3*0.75mm 3.0 450
SCV-750-4 4*0.75mm 3.5 450
SCV-750-7 7*0.75mm 4.0 450
SCV2-750-1 1*0.75mm 1.6 2700
SCV2-750-3 3*0.75mm 3.0 450
SCV2-750-4 4*0.75mm 3.5 450
SCV2-750-7 7*0.75mm 4.0 450
Note:

1. Regular dot marking distance: 15, 30, 40mm or customized;

2. Fiber strands can also be customized;
