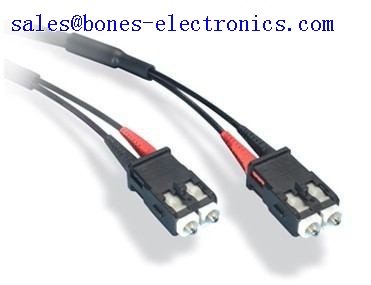

SC Plastic Fiber Optic Connector

Get A Quote

Main Features

Item:
Details:
SC Fiber optic POF connector for 1.0/2.2mm plastic optical fiber cable(POF cable), which is widely used for industrial fiber optics communication.

Features:

· High repeatability and low attenuation

· Field installable

· Standard crimp kevlar retention

· High performance Single-Mode and Multi-Mode connectors

· Low insertion loss:

o Multi-Mode: < 0.34 dB typical

o Single-Mode: < 0.15 dB typical

Description:

The SC fiber optic POF connectors, available in both single mode and multi mode models, are specially designed for distribution applications and are fully
compatible with existing SC type hardware. The connector was designed for small bend radius applications where space is limited. High quality, pre-polished and pre-radiuses zirconia ceramic ferrules are combined with the latest engineering polymers and metals to produce the ST connectors. Pre-polished ferrules minimize the polishing times and provide consistent ferrule endface geometry. When combined with the appropriate termination kits
and method, the connectors produce superior results both in the factory and in the field.

The ST adapters feature precision, low attenuation coupling, using polymer alignment sleeves in metal housing.

Units

Min.

Max.

Comments

Durability

~dB

0.1 FOTP-21A, 1000 cycles, cleaning every 100 cycles

Temperature range:storageoperating

ºCºC

-40-40

+80 May be further limited by cable specifications+80 May be further limited by cable specifications

Thermal shock

~dB

0.1   -40 to +60 /, 10 cycles

Temperature cycling

~dB

0.1   -40 to +80 /, 40 cycles

Humidity cycling

~dB

0.1 per FOTP-5 +60/C at 95% RH for 504 hours

Cable retention

~dB

0.2 per FOTP-6, 40lb. load without adhesive

ST Fiber Optic Connector

2012 02 28 11 32 415

We supply a wide range of the ST fiber optic POF connectors and ST fiber cable products, which are strictly tested before and after production. Besides standard
SC fiber optic connectors,we also accept OEM for customers’ various requirements. of which the body material can be stainless steel or Nickel plated brass
body. While the ferrule has zirconia ferrule and SUS303 ferrule for optional.Any requested ID are available.
