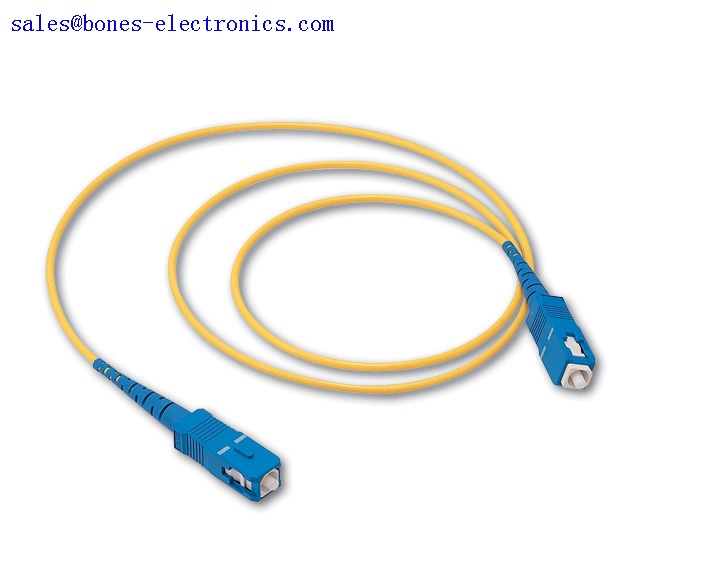

SC fiber optic patch cord is also called SC fiber optic patch cable, which is one of the earliest type and one of the most commonly used fiber optic cable.
Advantages of SC fiber optic patch cord:
it is convenient to use and cost saving,
It is the most cheapest type fiber optic patch cable.
SC fiber optic patch cable is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.
SC Fiber Optic Patch Cord Features:
♦ Low insertion loss.
♦ High return loss.
♦ High stability and reliability.
♦ General use waterproof, adapt for hard outdoor environment
♦ Easy to install,high reliability
♦ 2,4,6 cores available
SC Fiber Optic Patch Cord Applications:
♦ FTTH, LAN, PON & Optical CATV
♦ Local ring net
♦ Optical fiber communication system
♦ Optical fiber test equipment
♦ Optical fiber sensor
SC Fiber Optic Connector Specifications:
| Item | Single mode | Multi mode |
| Fiber diameter | 9/125um | 62.5/125um 50/125um |
| Insertion loss | PC＜0.3dB APC＜0.2dB | PC＜0.3 dB |
| Return loss | PC＞45 dB APC＞60 dB | PC＞25 dB |
| Insert–pull test | (1000 times)＜0.3 dB | |
| Interchange | ＜0.2 dB | |
| Operation temperature | -40℃ ~ +80℃ | |
| Anti-tensile force | 15kgf | |
We offer single mode and mutlimode SC fiber optic patch cables like SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000 etc.custom design SC fiber optic cable assemblies, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex.
