POF MOST 1355868 Connector

Get A Quote

Main Features

Item:
Details:

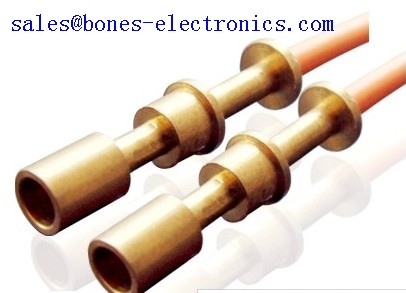

POF Connector for car MOST cable assembly, MOST 1355868 connector

Product: MOST-1355868 cable

Specification:

• Parameter Unit Value

• Core Diameter mm 1.0/0.25/0.5/0.75

• Outside Diameter mm 2.2~9.0mm±0.1mm

• Fiber Material — PMMA

• Jacket Material — Polyamide 12 ( PA 12 )

• Typical Attenuation dB/m 0.2(Wavelength:650nm

• Refractive Index — Step Index

• Insertion Loss dB 3.0

• Minimum Bend Radius mm 25

• Angle of incidence ° 60°

• Interchangeability dB 0.5

• Tensile Strength N 0.5dB(0~80N)

• Vibration — 0.5dB(5~50Hz)

• Operating Temperature °C -55°C-+85°C

• Storage Temperature °C -55°C-+85°C

Application:

• Digital radios

• GPS navigation system

• Active speakers

• CD changers

• Video displays

• Interactive security system

Features:

• Light & Tight, save the installation space

• Good Flexibility and Impact Resistance

• Can transmit synchronous data, asynchronous data and control data

• Support Plug and Play

• Anti-Electromagnetic Interference & Anti-Radio Wave Interference

• High Transfer Rate and speed. MOST25 Standard supports 125Mbps and MOST150 Standard supports 150Mbps

M.O.S.T (Media Oriented Systems Transprot) Standard is made up by 16 main car manufacturers in Europe in 2000, which
commands the Plastic Optical Fiber (POF) as the transmission medium of data transimission in cars. It is mainly applicated
in the cars’ Entertainment System and improveds the inner transimission speed to 900Mbit/s.

You may also interest in:

 TE%201355572  TE%201355531  TE%201355426

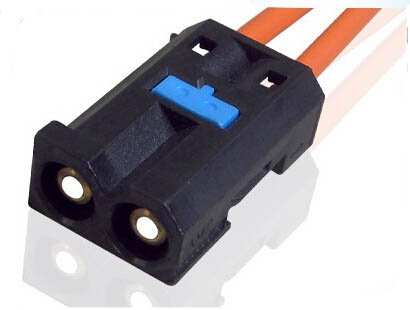

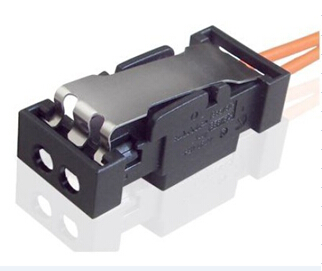

TE/AMP 1-1355572 TE/AMP 1-1355531-1 TE Connective 1355426
 BMW%20MOST%20TV%20FREE  TE%201823724  automotive%20pof%20cable

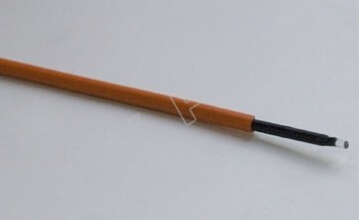

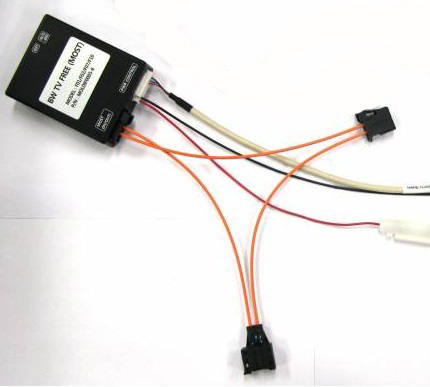

BMW MOST TV FREE TE 1-1394640-1 MOST25 transceiver  Automotive POF Cable
