Multi Strand End Glow Fiber Optic cable
LCV multi-stranded end glow fiber optic lighting cable,also called end glow fiber optic cable,end emitting fibre cable, consists of multiple 0.75mm PMMA bare fibers, sheathed with a black PVC jacket for mechanical protection and light transmission. The LCV end glow fiber cables are normally fixed with a fiber optic end fittings(fiber optic end emitting fixture) or are used for decorative applications such as fiber optic star ceilings,fiber optic pool lighting.
Basic properties
|
Fiber Core
|
Polymethylmethacrylate(PMMA)
|
|
Cladding Material
|
Fluroresin
|
|
Jacket Material
|
Black PVC or PE
|
|
Numerical aperture
|
0.5
|
|
Cable Appearance
|
Smooth surface, no visible crackles, defects or mechanical damage
|
|
Cable Diameter Fluctuation
|
±5%
|
|
Working Temperature
|
-20 ~ +70 ℃
|
Ordering Information
|
Part No.
|
Core Strands
(PCs)
|
Cable Dia. (mm)
|
Roll Length
(M)
|
Jacket Material
|
|
LCV-750-4
|
4
|
3.0±1.0
|
450
|
Black PVC
or
PE
|
|
LCV-750-7
|
7
|
4.0±1.0
|
450
|
|
|
LCV-750-14
|
14
|
5.0±1.0
|
300
|
|
|
LCV-750-25
|
25
|
6.0±1.0
|
100
|
|
|
LCV-750-42
|
42
|
8.0±1.0
|
100
|
|
|
LCV-750-75
|
75
|
12.0±2.0
|
100
|
|
|
LCV-750-126
|
126
|
14.0±2.0
|
100
|
|
|
LCV2-750-4
|
4
|
3.0±1.0
|
450
|
|
|
LCV2-750-7
|
7
|
4.0±1.0
|
450
|
|
|
LCV2-750-14
|
14
|
5.0±1.0
|
300
|
|
|
LCV2-750-25
|
25
|
6.0±1.0
|
100
|
|
|
LCV2-750-42
|
42
|
8.0±1.0
|
100
|
|
|
LCV2-750-75
|
75
|
0.75±2.0
|
100
|
|
|
LCV2-750-126
|
126
|
0.75±2.0
|
100
|
Applications:
Special lighting and illumination for Star Ceiling, furniture, swimming pool, underwater fountain, oil stock house and museum etc.

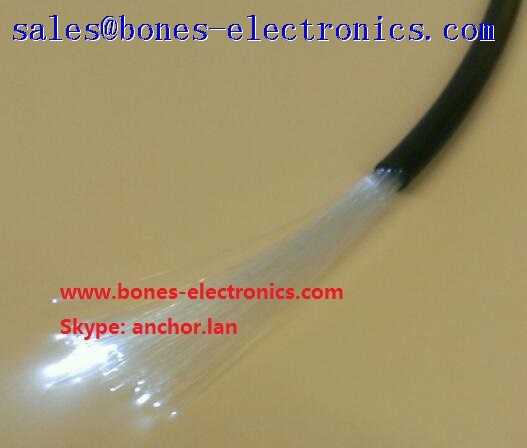

Multi-core end glow fiber optic lighting cable application
