Product name:LED-45 DMX 512 LED fiber optic illuminator
Item:LED-45 DMX
Details:

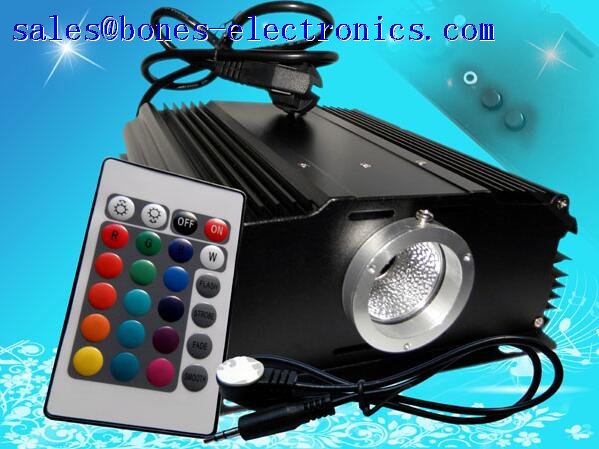

LED-45 DMX 512 LED Fiber Optic Illuminator

The LED-45 DMX 512 LED fibre optic illuminator,also called LED fibre optic light source,LED fiber optic light engine, fibre optic projector,is an economic high output fibre optic light engine with DMX 512 capability, allowing the color change pattern to be controlled via standard DMX lighting systems.The master/slave configuration can also be used meaning that the color change pattern is synchronized between light engines.

Details

• DMX 512 international interface

• Solid aluminum body

• Supplied with 8 color

• RF control available

• UV and IR filter

Specifications:

Input Voltage: 110 ~ 240 VAC 50/60Hz

Power Consumption: 45W

IP Rating: N/A

Construction: Black or Silver or Golden aluminum

Lighting Effect: white, purple, yellow, blue, green, orange, sky-blue and grass green

Motor Switch: DMX512 Signal cable

Lamp: RGB LED

Fibre Capacity: 1000 x 0.75mm fibres maximum

Environment: Ambient operating temperature of +5º to +40º C

Filters: Combined IR and UV

Dimensions: 180mm L x 196mm W x 76mm H

Weight: 2.5 kg

Warranty: 2 years

Product Code: LED-45 DMX
