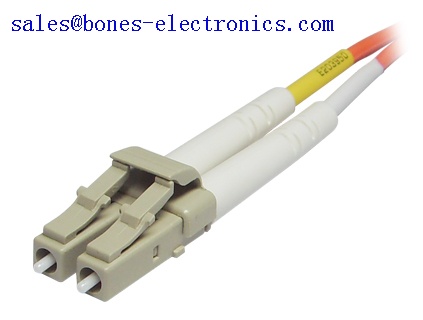

LC Fiber Optic Patch Cord

Get A Quote

Main Features

LC fiber optic patch cord is also called LC fiber optic patch cable, which is one of the earliest type and one of the most commonly used fiber optic cable.

Advantages of LC fiber optic patch cord:
it is convenient to use and cost saving,
It is the most cheapest type fiber optic patch cable.

LC Fiber Optic Patch Cord Features:

♦ Low insertion loss.
♦ High return loss.
♦ High stability and reliability.

♦ General use waterproof, adapt for hard outdoor environment

♦ Easy to install,high reliability

♦ 2,4,6 cores available

LC Fiber Optic Patch Cord Applications:

♦ FTTH, LAN, PON & Optical CATV
♦ Local ring net
♦ Optical fiber communication system
♦ Optical fiber test equipment
♦ Optical fiber sensor

LC Fiber Optic Connector Specifications:

Item Single mode Multi mode
Insertion loss PC <0.3dB APC <0.2dB PC<0.3dB
Return loss PC >50dB APC >60dB PC>35dB
Insert-pull test 1000 times <0.3dB
Operating temperature -40℃ ~ +80℃
Ceramic ferrule spec 125.5um concentricity deviations: <1um 127um concentricity deviations: <3um
Suitable fiber PC/APC(9/125um) PC(50/125um,62.5/125um)

We offer single mode and mutlimode LC fiber optic patch cables like LC-LC, LC-ST, LC-LC, LC-MU, LC-MTRJ, LC-E2000 etc.custom design LC fiber optic cable assemblies, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex.
