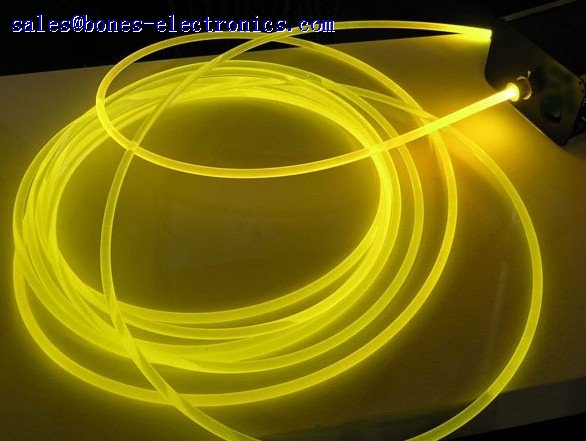

GZTGL-12 Solid Core Side Glow Fiber Optic Cable

Get A Quote

Main Features

Item:GZTGL-12
Details
Product: solid core side glow fiber and cable for lighting
Solid core side glow cable is a single large diameter monofilament which can transmit light over reasonably long distances. Light is transmitted over the entire length of the solid core optic, without electricity or heat. By jacketing with transparent PVC cover, the fiber can be well protected and UV protection function is available.

Features:
1. Product description : Side glow optical fiber
2. Diameter:1.5-18mm
3. Attenuation: <700dB/km
4. Certificates: REACH,SGS,ROHS,CE,ISO
5. Material: PMMA
6. Temperature: -20 ℃ ~ +85 ℃
7. Min. bend radius: less than 5 times diameter
8. Wavelength application: 380nm~780nm

Applications:

2012 05 15 20 24 035 2012 05 15 20 25 148
for swimming pool lighting for outline lighting of buildings















P/N Outer Dia.

(mm)

Inner Dia.

(mm)

Packing Carton Size

(mm)

Jacket/Sheath Material
GZT-2 2 2 carton 300x300x240 /
GZT-2.5 2.5 2.5 carton 300x300x240 /
GZT-3 3 3 carton 300x300x240 /
GZT-5 5 5 carton 300x300x240 /
GZT-6 6 6 carton 300x300x240 /
GZT-8 8 8 carton 300x300x240 /
GZT-10 10 10 carton 500x500x300 /
GZTGL-2 3.5 2 carton 500x500x300 Transparent PVC
GZTGL-2.5 4 2.5 carton 500x500x300 Transparent PVC
GZTGL-3 4.5 3 carton 500x500x300 Transparent PVC
GZTGL-6 8.8 6 carton 500x500x300 Transparent PVC
GZTGL-8 11 8 carton 500x500x300 Transparent PVC
GZTGL-10 13 10 carton 500x500x300 Transparent PVC
GZTGL-11 14 11 carton 500x500x300 Transparent PVC
GZTGL-12 14 12 carton 500x500x300 Transparent PVC
GZTGL-14 17.3 14 carton 500x500x300 Transparent PVC
GZTGL-16 18 16 carton 500x500x300 Transparent PVC
GZTGL-18 20 18 carton 500x500x300 Transparent PVC

For more palstic optical fiber and cable for lighting decoration, pls feel free to contact us.
