Item：F-SMA
Details：

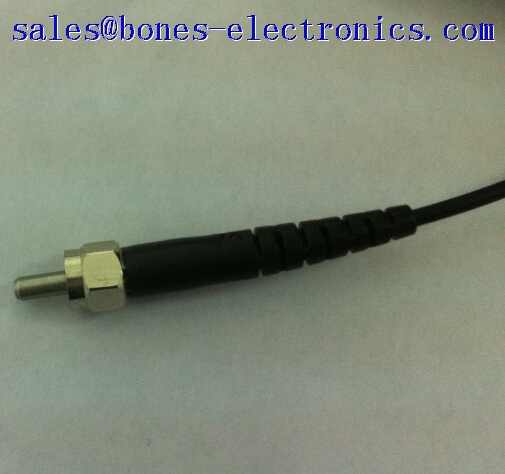

F-SMA 905, 1mm POF Connector
Standard SMA 905 connector for use with industry-standard 1.0 mm core plastic optical fiber(POF) with a 2.2 mm diameter inner jacket and 5.0 mm diameter outer jacket, such as Eska™ Premier GHTT4001, OUR CC2-1000, CCVZ2-1000, DC2-1000, DCVZ2-1000 series POF Cables.
Ferrule and nut are passivated per ASTM A967 for extra corrosion resistance.
We recommend this SMA connector for Eska™ Premier GHTT4001 or OUR CC2-1000, CCVZ2-1000, DC2-1000, DCVZ2-1000 series POF Cables.
Includes connector and silicone dust cap.
Manufacturer: Bones Electroncis Co., Ltd
RoHS Certification: Yes
Application: Any indoor industrial or data communications networks including Sercos.
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature | No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -55 ~ 125 |
| Operating Temperature | No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -55 ~ 125 | |
| Optical Properties |
Typical Loss | (650 nm Light) [ 25°C 50% RH ] |
dB | 1.5 |
Brochure Download:
F-SMA 905, 1mm POF Connector
