DCVZ2-1000 UL rated polymer optical fiber(POF) cable

Get A Quote

Main Features

Item:DCVZ2-1000
Details:
Bones Electronics manufactures a full line of premium quality polymer optical fiber(POF) and cables, as well as POF Patch cords such as AVAGO HFBR patch cords, Car MOST Patch Cords for Automotive multi-media system, Optical Toslink Cables etc..

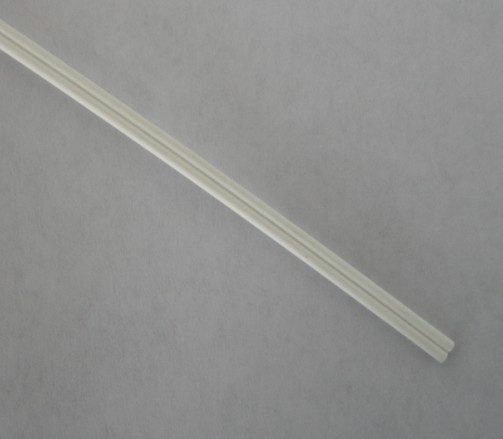

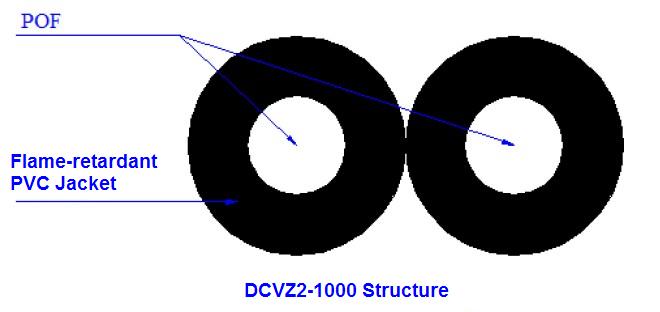

This particular UL-rated plastic fiber cable is made of Flame-retardant PVC jacket to keep the core from being influenced or damaged by fire or any other harsh envrioment. It contains industry-standard diameter 1.0 mm plastic optical fiber core/cladding jacketed with a gray polyvinyl chloride material. Its overall diameter is 2.2 mm. Patch cords are available in multiple standard lengths and shipped from stock or rapidly fabricated from stocked inventory to meet short delivery schedules. Here’s the structure detail:



项目(Item)



技术参数(Technical Parameters)

单位

(Unit)

塑 料 光 纤

PlasticOpticalFiber

纤芯材料(Core Material) 聚甲基丙烯酸甲酯(Polymethylmethacrylate)
包层材料(Cladding Material) 氟树脂 (Fluorinated Polymer)
纤芯折射率(Core Refractive Index) 1.49
包层折射率(Cladding Reflective Index) 1.41
折射率类型(Refractive Index Profile) 阶跃型(Step Index)
数值孔径(Numerical Aperture) 0.5±0.05
纤芯直径(Core Diameter) 980±60 μm
包层直径(Cladding Diameter) 1000±60 μm


护套

Jacket

材料(Material) 阻燃聚氯乙烯 (Flame retardant PVC )
直径(Diameter) 2.2±0.07 mm
颜色(Color) 黑色  (Black)
单位重量(Unit weight) 5.2 g/m
产品认证(Certification) 通过 ROHS、REACH(Pass:ROHS、REACH)


Flame-retardant UL rated POF cable specifications:

Part No. Fiber Dia. (mm) Fiber Strand
(mm)
Jacket Material Cable Dia.(mm) Attenuation@650nm
(dB/km)
N/A
CCVZ2-1000 1.00 Simplex Flame-retardant PVC 1.0*2.2 ≤180 0.5
DCVZ2-1000 1.00 Duplex Flame-retardant PVC 1.0*2.2*4.4 ≤180 0.5
