Item：CF2-750
Details：

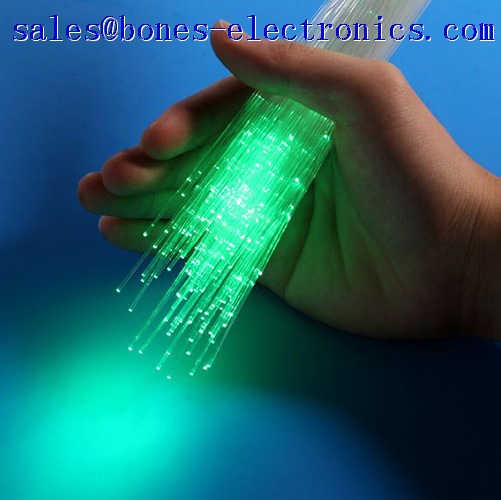

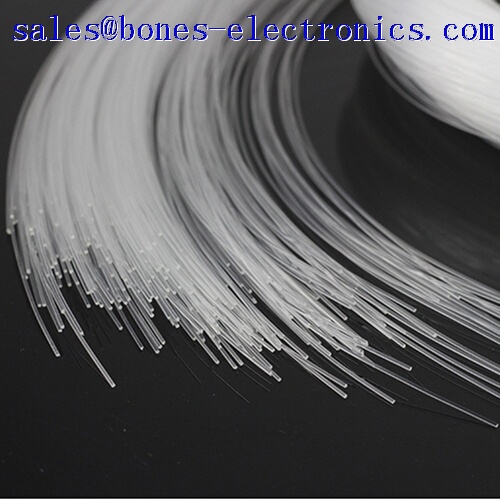

Compared with LF & LF2 Series Unjacketed PMMA Plastic Optical Fibers, the CF2 series Unjacked High-Performance Industrial Plastic Optical Fibers POF can work in harsh environment between temperature of -55~+85℃. And the CF2 series POF Fiber has a much lower attenuation loss at 650nm(about 0.18dB) . With these advantages,the CF2 Unjacked High-Performance Industrial Plastic Optical Fibers POF are widely used for Industrial control and data communication in harsh environment.
Features:
1. Low-loss optical window in the linght-visible area,
2. Be able to transmit visible light but not ultraviolet or infrared;
3. No conductivity or heat transfer;
4. Smooth surface,good flexibility bendable shape;
5. Strongest light effect at the end of the fiber;
6. Better performance in harsh environment;
Basic Properties:
| Fiber Core Material | Polymethyl Methacrylate (PMMA) |
| Cladding Material | Fluororesin |
| Appearance | Smooth, transparent |
| Numerical Aperture | 0.5 |
| Elongation Rate | ≥4 |
| Bending Radius | ≥ ten times of the fiber diameter |
| Operating temperature | -55 ~ +85℃ |
Selection Table:

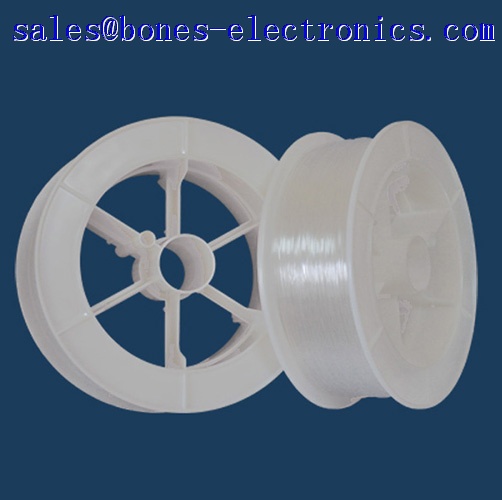

| Part Number | Fiber Diameter | Spool Length | Attenuation | Application |
| (mm) | (M) | (dB/M@650nm) | ||
| CF2-500 | 0.50 | 6000 | ≤0.20 | 1. Consumer Electronics
2. Fiber Optic Sensor 3. Industrial Control 4. Medical Imaging |
| CF2-750 | 0.75 | 2700 | ≤0.18 | |
| CF2-1000 | 1.00 | 1500 | ≤0.18 | |
| CF2-1500 | 1.50 | 700 | ≤0.18 |
