Main Features

Item:CCVZ2-1000
Details:

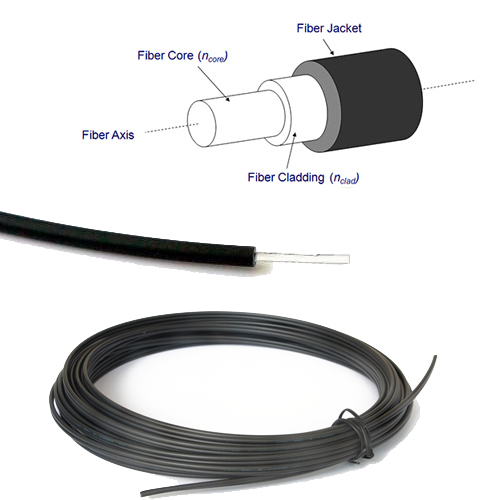

Equal to GHV 4001 Plastic Optical Fiber(POF)-2.2 mm Simplex POF Cable

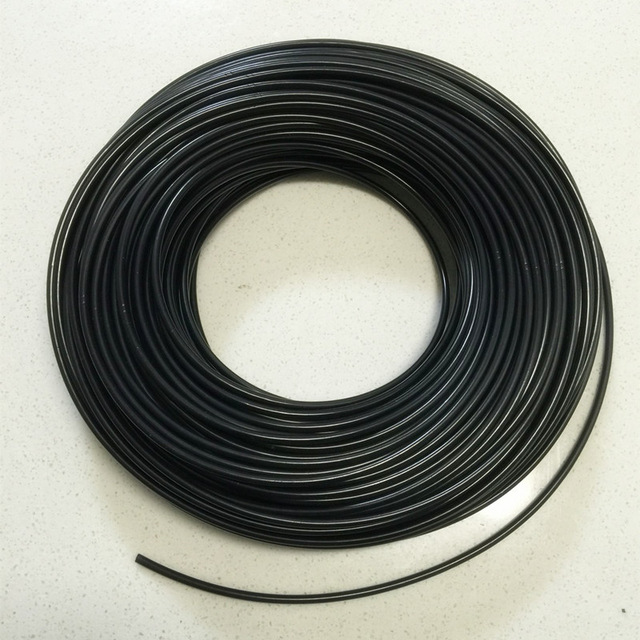

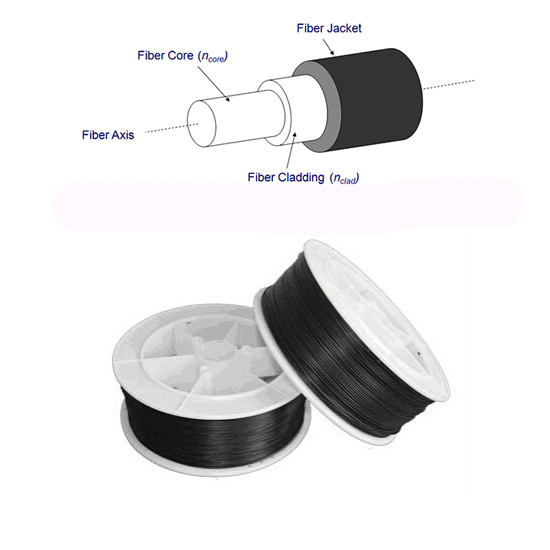

CCVZ2-1000 UL rated Plastic Optical Fiber (POF), equals to Mitsubishi Rayon GHV 4001, which is an ideal solution for industrial data applications.

Plastic Optical Fiber (POF) Benefits and advantages:

Simple to install
No special tools (bare fibre connection)
No software setup
Electrical (galvanic) isolation
Immune to data loss caused by electrical interference
Easy to conceal due to small size
Eye-safe fibre optic solution

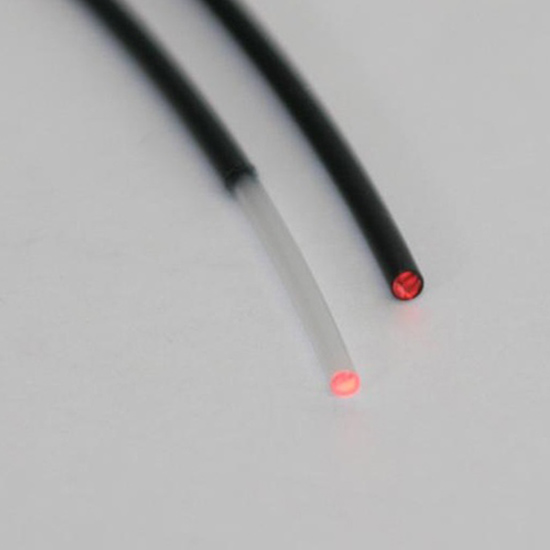

Visible light transmitter enables intuitive install

Applications

Any device or service that can use Ethernet
Gaming consoles / Home Theatre PCs
Outdoor Ethernet connection
Security-critical data connections

Ordering information:

Fiber Type 1.0/2.2 1.0/2.2 1.0/2.2×2 1.0/2.2/7.0 1.0/2.2/8.0 Customized
MFG P/N CC2-1000 CCVZ2-1000 DC2-1000 CCU2-1.0 2.2 7.0-4 CCV2-1.0 2.2
7.0-4

N/A 0.5
Attenuation
@650nm
≤180 dB/km ≤180 dB/km ≤180 dB/km ≤180 dB/km ≤180 dB/km ≤180 dB/km
Index Structure Step-index
Core Dia.
(μm)
980±45 980±45 980±45 980±45 980±45 980±45
Cladding
Dia. (μm)
1000±45 1000±45 1000±45 1000±45 1000±45 1000±45
1st Jacket
Dia.(mm)
2.2 2.2 2.2 2.2 2.2 2.2
2nd Jacket
Dia.(mm)
4.4 7.0 8.0 Customized
Core Material PMMA
Cladding
Material
fluorine-containing acrylic resin
1st Jacket
Material
PE 2.2 2.2 2.2 2.2 2.2
2nd Jacket
Material
Flame retardant
TPU
Flame retardant TPU/Kelver/armourd Customized
Working

Temperature
(℃)

-10 / +85℃ -10 / +85℃ -10 / +85℃ -55 / +85℃ -55 / +85℃ Customized
