Item:CCVZ2-1000
Details:

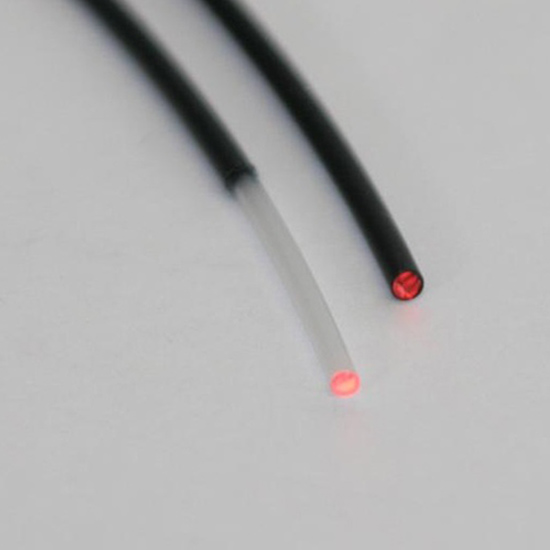

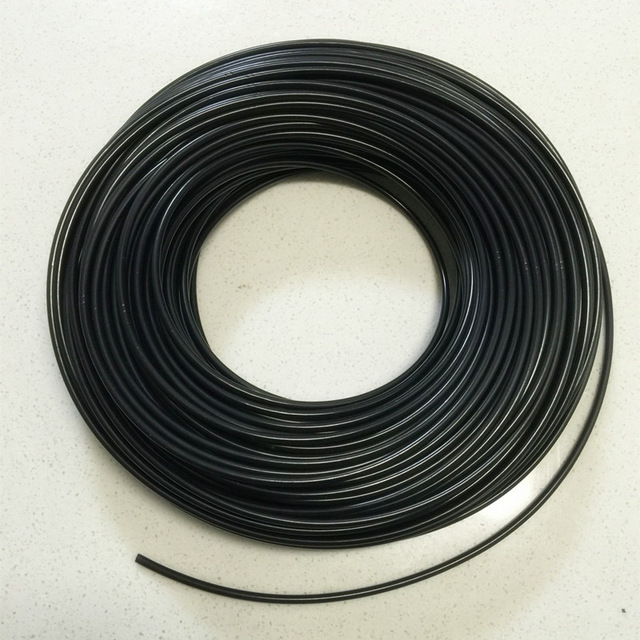

Flame Retardant 1mm core 2.2mm O.D. Halogen-free PE Jacket Industrial POF Cable,without UL label
Compared with general purpose Jacketed Single-core Plastic Optical Fiber(POF) Cable ,the CCVZ2-1000 series Flame-Retardent Single core Industrial POF Cable is jacketed with Halogen-free flame-retardent PE sheath to protect the PMMA Fiber Core from harsh environment. It is normally used to replace some famous brands such as Asahi TCF-1000 POF Simplex Cable, Mitsubishi ESKA SHV4001 POF Cable for short distance transmission within 100meters.
POF Simplex Cable benefits:
l Less applied cost than copper and glass fiber
l Lower installation labor cost
l Low-power optical POF switch means no mechanical air flow fans required
l Less infrastructure support required from up-stream high-speed switches and routers
l Cost savings due to fewer physical ports
l 50% less power to operate than copper
l 80% reduction of carbon dioxide than copper
l Secure, robust, reliable data transfer
l No cross talk interference
l No electromagnetic interference
l Lightweight with excellent toughness and durability
l Waterproof, moisture-proof, magnetic-free
l ROHS certified

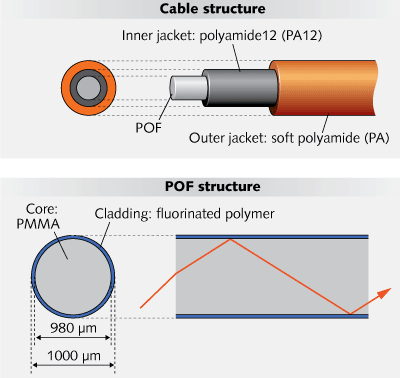

POF Simplex Cable basic properties:
Fiber Core Material: PMMA
Cladding Material: Fluorinated Polymer
Jacketing Material: Black Halogen-free flame-retardent PE
Optical Instruction: Step Index Model
Numerical Aperture: 0.5
Allowable Bend Radius: No less than ten times of optical fiber diameter
Core Refractive Index: 1.492
POF Simplex Cable application:
1. Consumer: HDTV & Set-top box
2. Industrial Control:
l Controller board
l Frequency Inverters/Converters/Drives
l Networking
l Power distribution
l Power transmission
l Smart grids
3. Industrial Automation: Factory automation
4. Medical:
l Diagnostic equipment
l Optical sensors
l Telemedicine- and Telehealth devices
5. Sustainable Energy
l Optical Sensors
l Wind Industry
6. Telecommunications/Networking: Data communication
POF Simplex Cable technical parameters:
Parameters | Unit | Numerical Value |
Fiber Core Material | — | Polymethylmethacrylate (PMMA) / |
Cladding Material | Fluroresine Polymer | |
Jacket Material | — | Halogen-free flame-retardent PE |
Numerical Aperture | — | 0.5 |
Working Wavelength | nm | 525~650 |
Incident Angle | — | ≤60° |
Bandwidth | MHz·100m | ≥10 |
Bending Radius | — | ≥10 times of fiber diameter (Temporary) |
≥20 times of fiber diameter (Permanent) | ||
Operating Temperature | ℃ | -55~ +85 |
Storage Temperature | ℃ | -55~ +85 |
Refractive Index | — | Step index |
Performance | Criteria for Acceptance
and/or [ Test Conditions ] |
Unit | Value | |
Maximum
Rating |
Storage Temperature | No Physical Deterioration
[ in a Dry Atmosphere ] |
℃ | – 55 ~ 85 |
Operating Temperature | No Deterioration in Optical Properties
[ in a Dry Atmosphere ] |
℃ | – 55 ~ 85 | |
No Deterioration in Optical Properties
[ under 95% RH condition ] |
℃ | N/A | ||
Optical
Properties |
Transmission Loss | (650 nm Collimated Light)
[ 25°C 50% RH ] |
dB/m | 0.15 Max. |
Transmission Loss
under 95% RH |
(650 nm Collimated Light)
[ Operating Temperature ] |
dB/m | 0.19 Max. | |
Mechanical
Characteristics |
Minimum Bend Radius | Loss Increment <0.5 dB
[ A Quarter Bend ] |
mm | 30 |
Tensile Strength | Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ] |
N | 90 | |
Twisting Strength | Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ] |
Times | N/A | |
Impact Strength | Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ] |
N.m | N/A |

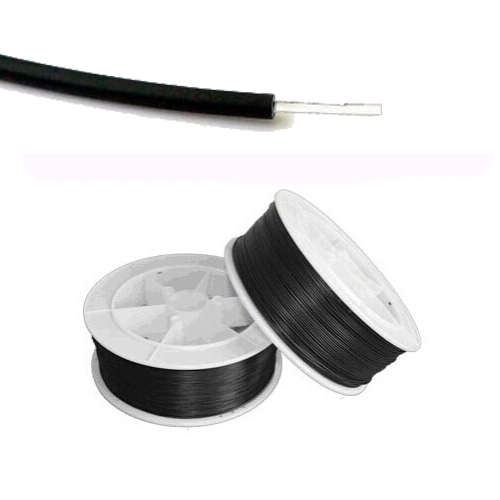

POF Simplex Cable ordering information:
Part Number | Fiber Diameter | Cable Diameter | Spool Length | Attenuation |
(mm) | (mm) | (M) | (dB/M@650nm) | |
CCVZ2-1000 | 1.00±0.06 | 2.2±0. 07 | 1500/2600/5200 | ≤0.16 |
We manufacture various PMMA Bare Fiber and POF Cables for Commercial Lighting and Industrial application. If you have a specialized application where your specifications fall outside the capabilities of products you can not find on our website, please contact us.
