Item：CCA2-1000
Details：
Automotive Polymer Optical Fiber-Plastic Optical Fiber(POF) Cable-Automotive MOST application

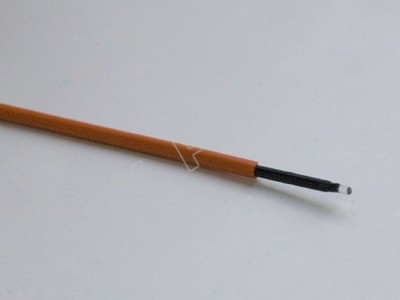

Product: High Performance Automotive Polymer Optical Fiber Cable
Part No.: CCA2-1000
Core Material: PMMA
Core Diameter: 0.98mm
Cladding Material: Fluorinated Polymer
Core Refractive Index: 1.49
Clad Reflective Index: 1.41
Refractive Index Type: Step Index
Brief Introduction:
This automotive Polymer Optical Fiber(POF) Cable is specially designed for the application where high temperature working enviroment exists. The most typical application of this is for Automotive Multi-media System or Automotive Audio System.
Compared with general purpose Plastic Optical Fiber(POF) Cable, this special POF cable is jacketed with heat resistant Nylon, which assures the Max. temperature of this Automotive POF Cable can reach 105 Celsius Degrees.
Technical Specifications:
| Parameters | Numerical Value |
| Fiber attenuation |
≤0.2dB/m (Wavelength：650nm) |
| 1st jacket diameter | 1.51±0.04mm |
| 2nd jacket diameter | 2.30±0.07mm |
| 1st jacket material and color | PA, black |
| 2nd jacket material and color | PA，orange |
| Tensile strength | ≤0.5dB (0~80N) |
| NA | 0.5 |
| Operating temperature |
-55~+85℃ |

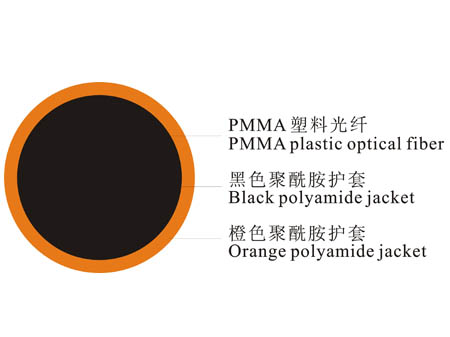

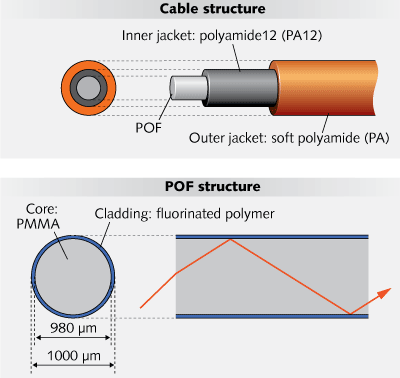

Structure:
| 项目(Item) | 技术参数(Technical Parameters) | |
|
塑 料 光 纤 Plastic Optical Fiber |
纤芯材料(Core Material) | 聚甲基丙烯酸甲酯(Polymetyl-methacrylate) |
| 包层材料(Clad Material) | 氟树脂 （Fluorinated Polymer） | |
| 纤芯折射率(Core Refractive Index) | 1.49 | |
| 包层折射率(Clad Reflective Index) | 1.41 | |
| 折射率类型(Refractive Index Profile) | 阶跃型(Step Index) | |
| 数值孔径(Numerical Aperture) | 0.50 | |
| 纤芯直径(Core Diameter)μm | 980±60 | |
| 光纤直径（clad Diameter)μm | 1000±60 | |
|
护套 1 层 1st Jacket |
材料（Material） | 尼龙 (Polyamides ) |
| 直径（Diameter） | 1.51±0.05mm | |
| 颜色（Color） | 黑色 (Black) | |
|
护套 2 层 2nd Jacket |
材料（Material） | 尼龙 (Polyamides ) |
| 直径（Diameter） | 2.3±0.1mm | |
| 颜色（Color） | 桔色（Orange） | |
| 耐温等级（VICATA） | 85℃ | |
| 单位重量（Appoximate weight）(g/m) | 4.0 | |
Applications:
1. Digital broadcast
2. Vehicle-mounted telephones
3. GPS navigation system
4. Video monitoring system
5. Interactive safety system
6. Multimedia entertainment system
Click to download data sheet of this automotive Polymer Optical Fiber(POF) cable
