Item：CC-1000
Details：
Abbreviated as POF, PMMA Plastic Optical Fiber(also called Polymer Optical Fiber) is a type of optical fiber that uses uses PMMA (Acrylic) as the core material and Fluorinated polymers as the cladding material,which allows the transmission of light.
POF is often called consumer optical fiber because it is a low-cost optical fiber alternative that is easier to use than glass optical fiber. It sustains a data transfer speed of 2.5GB/s, which isn’t as fast as glass optical fiber, but is much faster than traditional copper wire.On the other hand, the weight is lighter and cost is lower than traditional cooper wire.

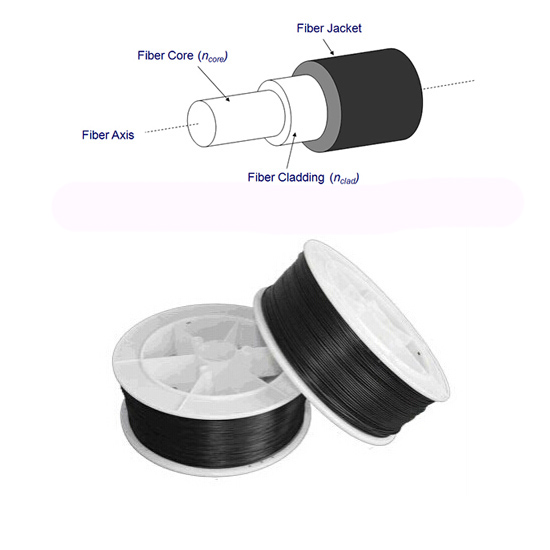

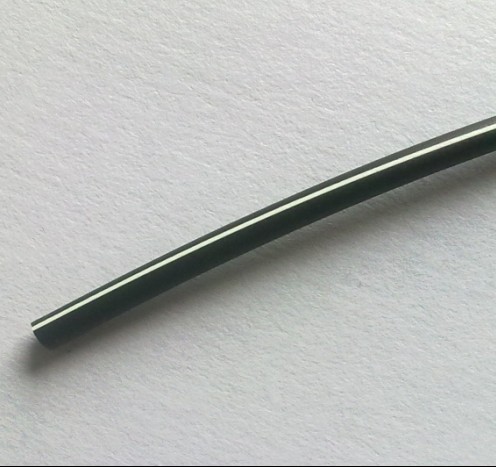

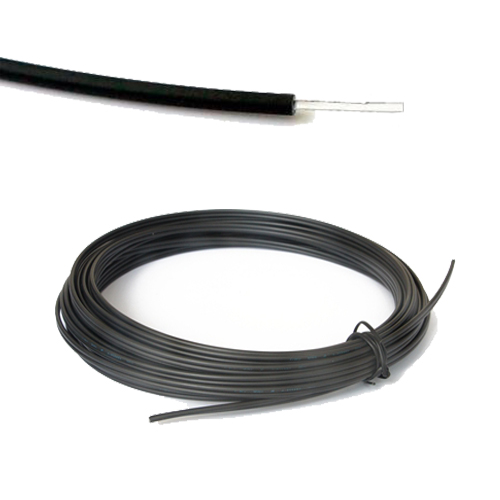

CC2 Series of PMMA Plastic Optical Fiber-POF Cable refers to the PMMA Plastic Optical Fiber jacketed with PE or PVC or PUR sheath to protect the PMMA Fiber Core from harsh environment. The CC series POF Simplex cable is normally used to replace some famous brands such as Asahi DC-1000 POF Simplex Cable, HITRONIC J-V2Y(ZN)11Y POF Simplex Cable,Mitsubishi ESKA SH4001 POF Cable for short distance transmission within 100meters.
POF Simplex Cable benefits:
lLess applied cost than copper and glass fiber
lLower installation labor cost
lLow-power optical POF switch means no mechanical air flow fans required
lLess infrastructure support required from up-stream high-speed switches and routers
lCost savings due to fewer physical ports
l50% less power to operate than copper
l80% reduction of carbon dioxide than copper
lSecure, robust, reliable data transfer
lNo cross talk interference
lNo electromagnetic interference
lLightweight with excellent toughness and durability
lWaterproof, moisture-proof, magnetic-free
lROHS & UL certified
POF Simplex Cable basic properties:
Fiber Core Material: PMMA
Cladding Material: Fluorinated Polymer
Jacketing Material: Black PE or PVC
Optical Instruction: Step Index Model
Numerical Aperture: 0.5
Allowable Bend Radius: No less than ten times of optical fiber diameter
Core Refractive Index: 1.492
POF Simplex Cable application:
1. Consumer: HDTV & Set-top box
2. Industrial Control:
l Controller board
l Frequency Inverters/Converters/Drives
l Networking
l Power distribution
l Power transmission
l Smart grids
3. Industrial Automation: Factory automation
4. Medical:
l Diagnostic equipment
l Optical sensors
l Telemedicine- and Telehealth devices
5. Sustainable Energy
l Optical Sensors
l Wind Industry
6. Telecommunications/Networking: Data communication
Technical Parameters：
| Parameters | Unit | Numerical Value |
| Fiber Core Material | — | Polymethylmethacrylate (PMMA) / |
| Cladding Material | Fluroresine Polymer | |
| Jacket Material | — | PE/PVC/PUR |
| Numerical Aperture | — | 0.5 |
| Working Wavelength | nm | 525~650 |
| Incident Angle | — | ≤60° |
| Bandwidth | MHz·100m | ≥10 |
| Bending Radius | — | ≥10 times of fiber diameter (Temporary) |
| ≥20 times of fiber diameter (Permanent) | ||
| Operating Temperature | ℃ | -55~ +85 (CC2 series) |
| -40 ~ +70 (CC series) | ||
| Storage Temperature | ℃ | -40 ~ +70 |
| Refractive Index | — | Step index |
| Performance | Criteria for Acceptance
and/or [ Test Conditions ] |
Unit | Value | |
| Maximum
Rating |
Storage Temperature | No Physical Deterioration
[ in a Dry Atmosphere ] |
℃ | – 40 ~ 85 |
| Operating Temperature | No Deterioration in Optical Properties
[ in a Dry Atmosphere ] |
℃ | – 40 ~ 70 | |
| No Deterioration in Optical Properties
[ under 95% RH condition ] |
℃ | N/A | ||
| Optical
Properties |
Transmission Loss | (650 nm Collimated Light)
[ 25°C 50% RH ] |
dB/m | 0.20 Max. |
| Transmission Loss
under 95% RH |
(650 nm Collimated Light)
[ Operating Temperature ] |
dB/m | 0.19 Max. | |
| Mechanical
Characteristics |
Minimum Bend Radius | Loss Increment <0.5 dB
[ A Quarter Bend ] |
mm | 30 |

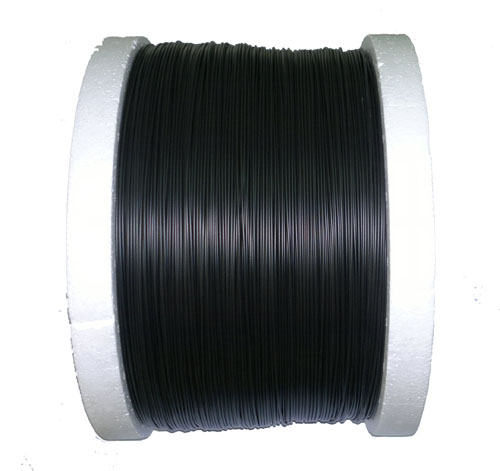

Ordering Information:
| Part Number | Fiber Diameter | Cable Diameter | Spool Length | Attenuation |
| (mm) | (mm) | (M) | (dB/M@650nm) | |
| CC2-1000U | 1.0±0.06 | 2.2±0. 07 | 1500/2600/5200 | ≤0.15 |
| CC2-500 | 0.50±0.03 | 1.0±0.05 | 1000/6000 | ≤0.20 |
| CC2-750 | 0.75±0.05 | 2.2±0.07 | 2700 | ≤0.18 |
| CC2-1000 | 1.00±0.06 | 2.2±0. 07 | 1500/2600/5200 | ≤0.18 |
| CC2-1500 | 1.5±0.09 | 2.5±0.10 | 700 | ≤0.18 |
| Part Number | Fiber Diameter | Cable Diameter | Spool Length | Attenuation |
| (mm) | (mm) | (M) | (dB/M@650nm) | |
| CC-500 | 0.50±0.03 | 1.0±0.05 | 1000/6000 | ≤0.30 |
| CC-750 | 0.75±0.05 | 2.2±0.07 | 2700 | ≤0.25 |
| CC-1000 | 1.00±0.06 | 2.2±0. 07 | 1500/2600/5200 | ≤0.25 |
| CC-1500 | 1.5±0.09 | 2.5±0.10 | 700 | ≤0.25 |
CC2-1000 POF Simplex Cable Data Sheet Download
