Item：BHDC-20MM-040
Details：

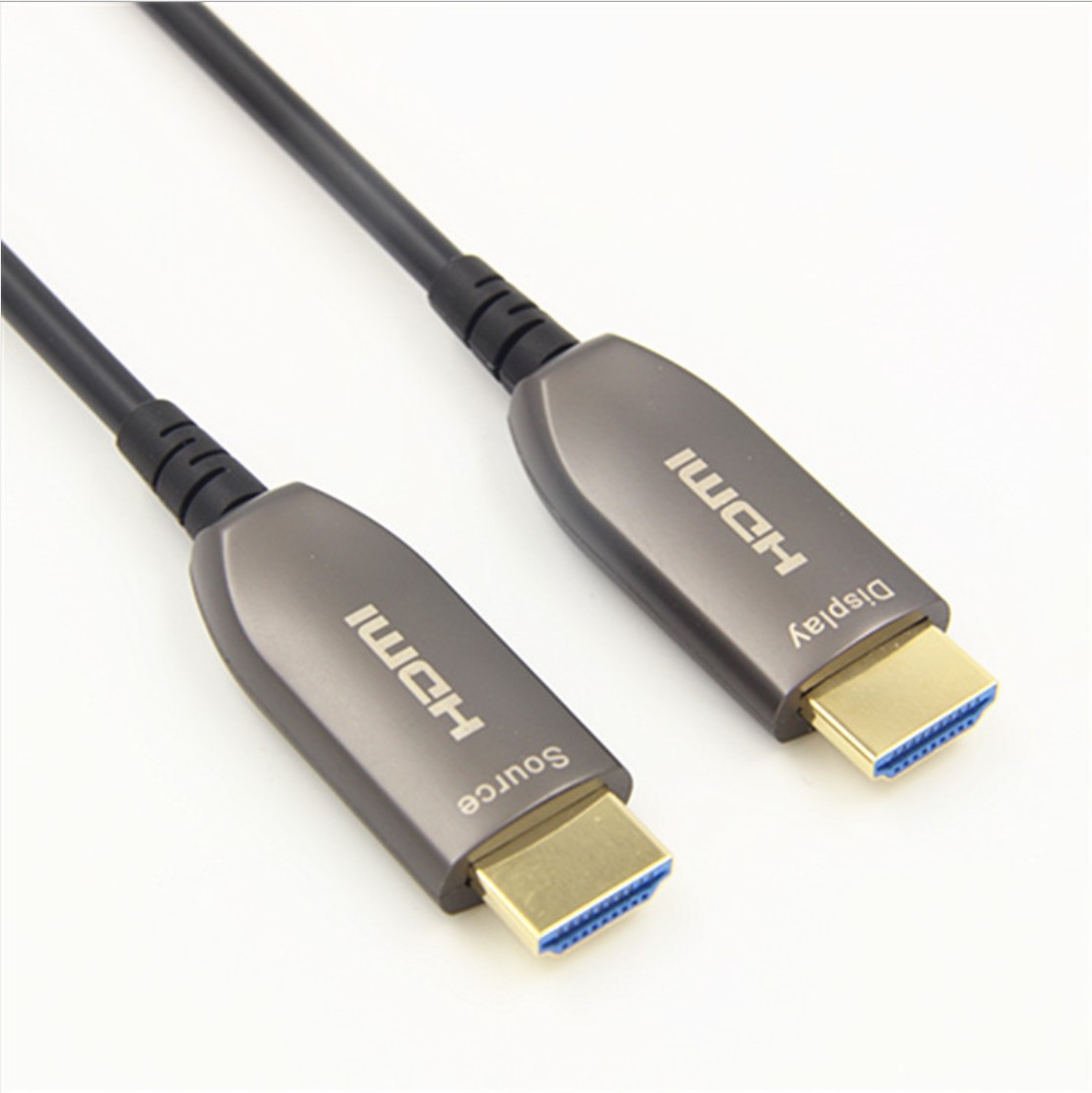

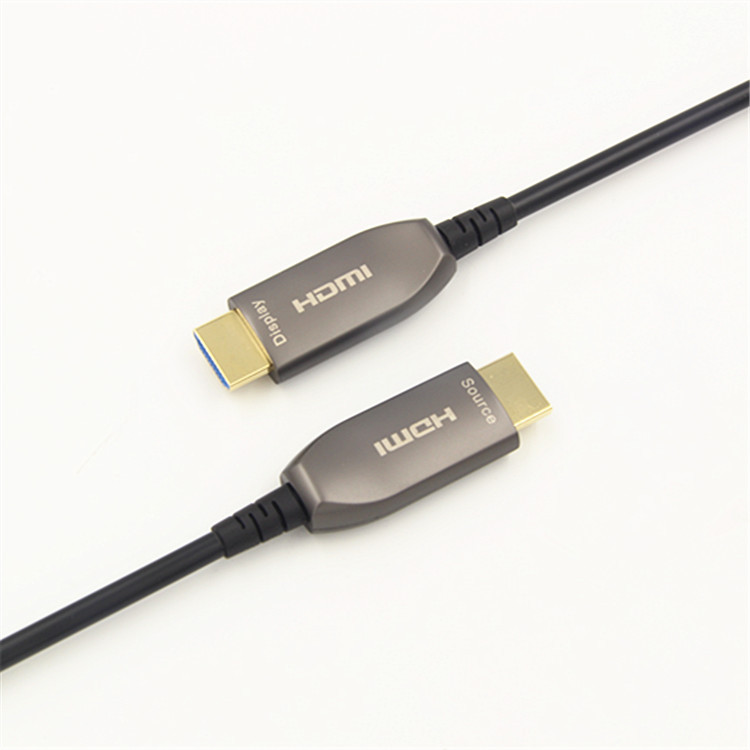

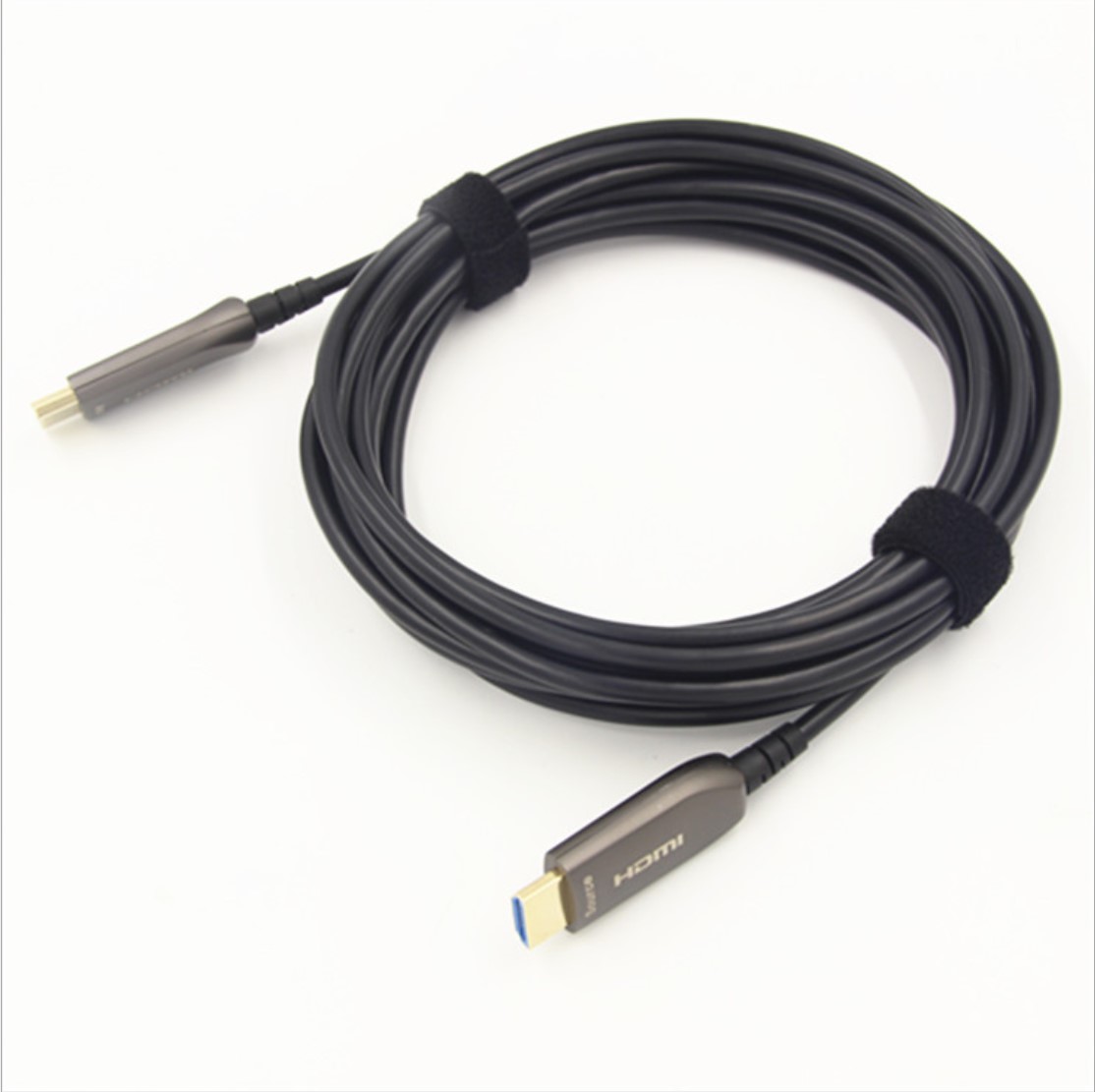

40 Meter 4K 60Hz HDMI 2.0 Fiber HDMI Cable 18Gbps | Male to Male | Premium High Speed
Product Description:
HDMI 2.0 fiber active optical cable(AOC) is also called 4K active optical cable(AOC),4K Fiber Optic HDMI Cable, 18G HDMI® Active Optical Cable. It utilizes BONES’ unique AOC+™ technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions and 100 meters maximum transmission length (lengths can be customized). This EMI-resistant optical cable fully supports 18Gbps signal bandwidth and 4K@60Hz YUV 4:4:4 video resolution. It is the ideal solution for extending the reach of your digital signage in various settings, such as Blu-ray players, set top boxes, game consoles, monitors for large shopping malls and hospital facilities etc.
Features：
l AOC (Active Optical Cable) Fiber/Copper inner conductor material and 24K gold-plated connectors provide maximum video clarity;
l Supports HDCP2.2 two-way EDID and HDCP communication;
l Supports 4096 x 2160, 4K (60P), 3D full HD transmission distance up to 100 meters;
l Energy saving, low power consumption (max. 250mW), no extra power supply required;
l Transmission rate up to 6Gbps/channel, total bandwidth can be 18Gbps;
l Plug-and-play – no software or setting required;
l RF/EMI free for clear signal transmission;
l Easy to carry and install with optical fiber cable;
l Length can be customized;
Applications：
l Digital signage
l LED signs & monitors for stadiums,hospitals,shipping malls
l Medical imaging equipment
l Airport boarding video information system
l Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
l Radio and TV station
l Video conference equipment
l Security monitoring system
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.5 | 5.5 | V |
| Working Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Storage Humility | Hs | 10 | 80 | %RH |
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.75 | 5.25 | V |
| Working Temperature | Top | 0 | 50 | °C |
Technical Specification：
| Item | Description | |
| Source | Transmit(Source) | Receiver(Display) |
| HDCP | Support two-way EDID and HDCP communication | |
| Video Bandwidth | Maximum 6Gbps/*3 Channels | |
| Clock Rate | 600 MHz | |
| Bandwidth | Maximum18Gbps | |
| Resolution | PC: WUXGA 4096 x 2160, maximum 100 meters(330 feet)
HDTV : 480p, 720p, 1080i and 1080p color depth, 4K(60P), 3D: Full HD 4096 x 2160max. 100m |
|
| Solution | 4 channel 850 nm VCSEL array | 4 CH GaAs PD array |
| Connector Type | HDMI type A | |
| Optional Length (Tolerance±30cm) | 10m/15m/20m/30m/40m/50m/60m/70m/80m/90m/100m
Can be customized; |
|
| Power Consumption | 250mW | |
| Working Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F). | |
| Relative Humility | 5% to 90% (non-condensing) | |
| LENGTH | PART NUMBER / SKU | DESCRIPTION |
| 10m / 33ft | BHDC-20MM-010 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 15m / 50ft | BHDC-20MM-015 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 20m / 67 ft | BHDC-20MM-020 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 30m / 100ft | BHDC-20MM-030 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 40m / 131ft | BHDC-20MM-040 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 50m / 164ft | BHDC-20MM-050 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 60m / 197ft | BHDC-20MM-050 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 70m / 230 ft | BHDC-20MM-070 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 80m / 263 ft | BHDC-20MM-080 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 90m / 295 ft | BHDC-20MM-090 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
| 100m /328 ft | BHDC-20MM-100 | 4K 60Hz 18Gbps HDMI Fiber Active Optical Cable (AOC) |
For more details, please contact us.
