AVAGO HFBR4501/4511 Versalink HFBR4501/4511-Avago-POF Patch Cord

Get A Quote

Main Features

Item:AVAGO HFBR4501/4511
Details:

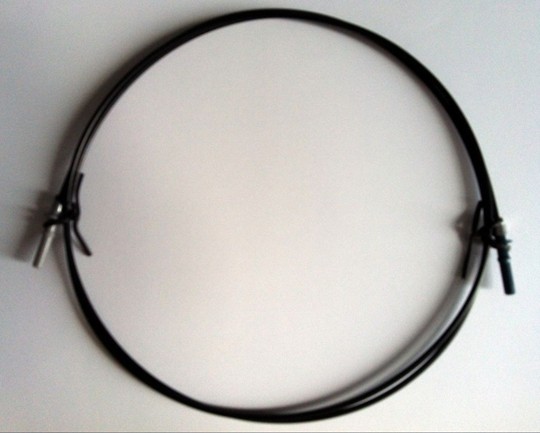

Product: HFBR4501/4511-Avago-POF Patch Cord

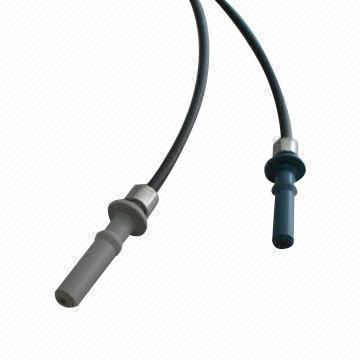

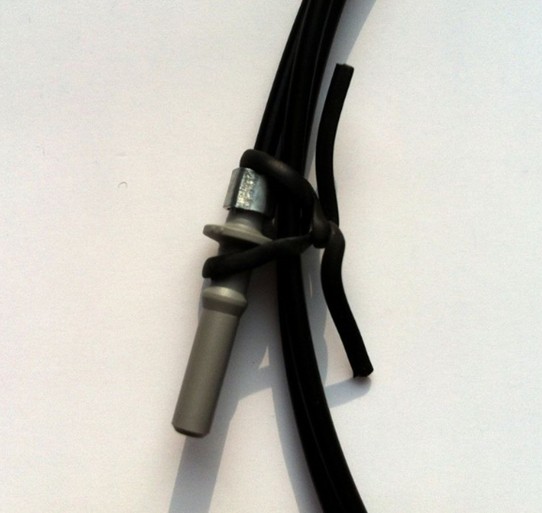

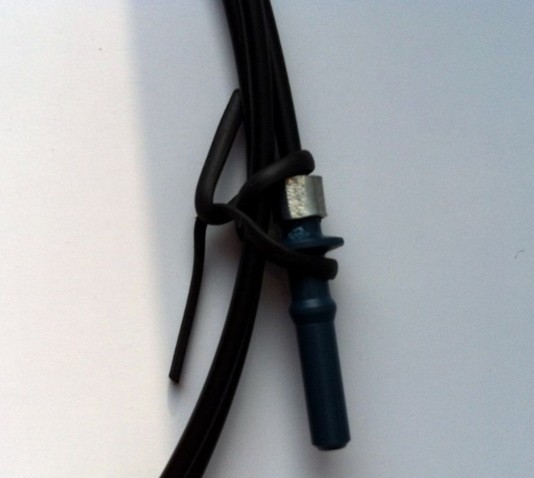

Connector: HFBR 4511 TO HFBR 4501
POF Cable: 980/1000UM SIMPLEX 2.2MM OD PE JACKET BLACK



Technical Parameters

Parameters

Unit

Numerical value

Fiber diameter

mm

1.0

Cable diameter

mm

2.2±0.1

Fiber material

PMMA

Jacket material

PE

Attenuation

dB/m

0.2

Insertion loss

dB

<0.5

NA

0.5

Wavelength

nm

650

Incident angle

60°

Bandwidth

MHz·100m

10

Cable length

m

1~100mto order

Bend radius

10 times of fiber dia.

Operating temperature

-45~80

Storage temperature

-45~80

Refractive index

Step index

Features:



· Simplex, duplex, latching and non-latching connector options

· UL-rated fiber cable and connections

· Crimped and epoxied connector terminations for maximum retention strength

· 1 µm polish terminations ensure high optical coupling efficiency

· Assembly processes exceed Avago recommended procedures

· Standard fiber lengths for low-cost manufacturing and quick delivery

Applications:

· Videos

· Active device termination

· Premise installations

· Telecommunication networks

· Local area networks (LANs)

· Data processing networks

· Wide area networks (WANs)

· Industrial, medical and military
