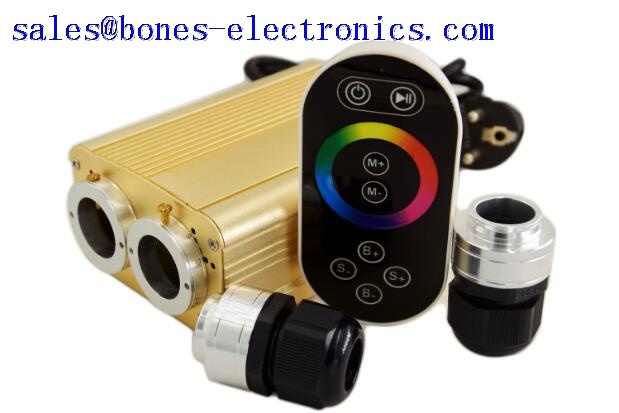

32W Dual Ports LED Fiber Optic Lighting Engine

The LED-32 Dual Ports LED fiber optic illuminator, also called fibre optic light source,fibre optic light engine,fibre optic projector,is an economic high output fibre optic light engine with dual ports, allowing twice PMMA fiber optics to be illuminated by one light engine.

Details

• DMX 512 international interface

• Solid aluminum body

• Supplied with 8 color

• RF control available

• UV and IR filter

Specifications

Input Voltage: 110 ~ 240 VAC 50/60Hz

Power Consumption: 32W

IP Rating: N/A

Construction: Black /Silver/Golden aluminum

Lighting Effect: white, purple, yellow, blue, green, orange, sky-blue and grass green

Lamp: RGB LED

Max. Fibre Capacity: 2*645 x 0.75mm fibres

Environment: Ambient operating temperature of +5º to +40º C

Filters: Combined IR and UV

Dimensions: 128mm L x 95mm W x 55mm H

Weight: 0.70 kg

Warranty: 2 years

Product Code: LED-32
